Manual PCB Depanel Separation For 460mm Length PCB And LED Panel

Manual PCB Depanel Separation For 460mm Length PCB And LED Panel
Manual PCB Depanel Separation For 460mm Length PCB And LED Panel

Hình ảnh lớn :  Manual PCB Depanel Separation For 460mm Length PCB And LED Panel

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: chuangwei pcb depanel
Chứng nhận: CE and GMC
Model Number: CWV-1M pcb depanel

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: plywooden case
Delivery Time: within 3 days after receive the payment
Payment Terms: Western Union, T/T ,cash , paypal
Supply Ability: 80 sets / month
Chi tiết sản phẩm
MOQ: 1 set Max . pcb cutting length: 460 mm / 700mm
material: high speed steel type: manual operation
package: plywooden case shipping way: according to customers requirement
Điểm nổi bật:

PCB Cutting Shear

,

pcb depaneling machine



Manual PCB Depanel Separation For 460mm Length PCB And LED Panel





Specification :



Model

CWV-1M

Max. pcb cutting Length (mm)

460/700/1000/1500

pcb cutting Speed (mm/s)

manual

Separation Thickness (mm)

0.6~3.5

pcb cutting machine Size (mm)

400*780*480

pcb separator Weight (Kg)

55

Blade Hardness (HB)

540~567

Blade Hardness (HRC)

60~63

Blade working life for metal (Year)

0.5

Blade working life for PCB (Year)

1

Guarantee (Year)

1

Delivery (Day)

within 3 days

Min. Order (Set)

1

Ability (Set)

1000 sets / year





Detailed Product Description :



1 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board ) ,  LED .

 2 . Mold make of SKH-11 Steel,Blade is SKH-9 ( From Japan ) , Rigorous Job !





Technical characteristics :


1 . Structural precision , the load evenly , to eliminate internal stress

2 . Safe , easy to operate

3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )





Features :

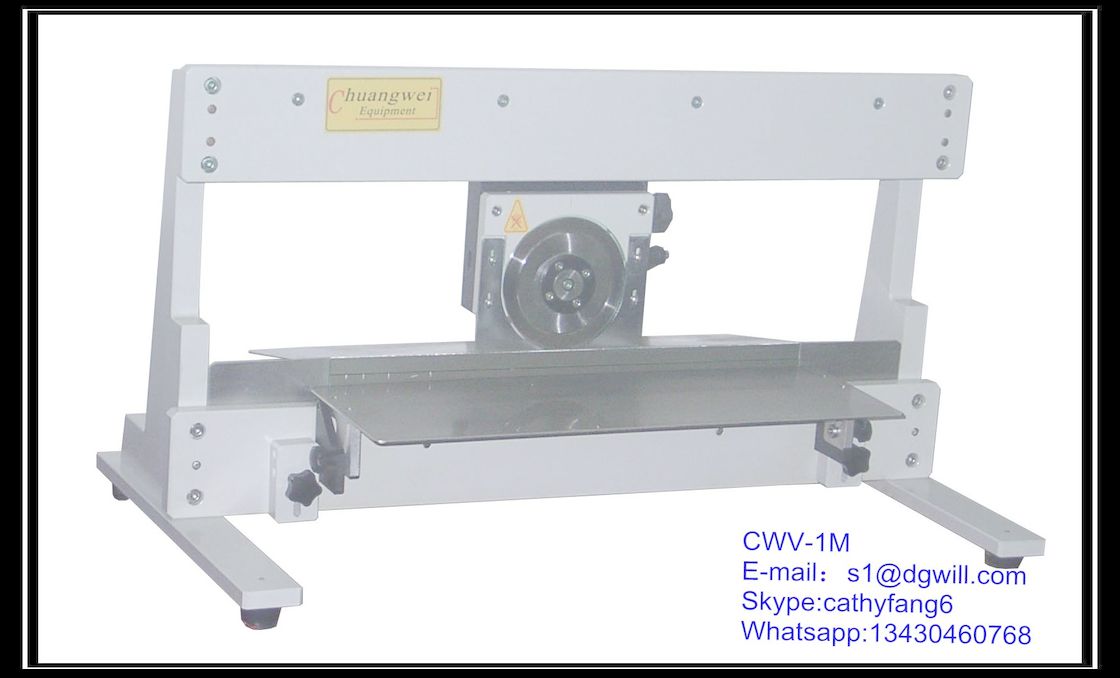

CWV-1M  separates both small and large pre-scored PCBs . The table and the rest can be continuously adjusted to the most suitable working position . The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out . The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB . The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove . The pre-scored grooves can be interrupted by any number of cutouts . If components project above the groove , the linear blade needs to be omited. In such a case , please contact us .

Manual PCB Depanel Separation For 460mm Length PCB And LED Panel 0



Please note :



round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste . However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board  ( e.g .  CWVC-3  CWVC-2L  CWVC-450  CWVC-480 ).

Manual PCB Depanel Separation For 460mm Length PCB And LED Panel 1
