Aluminum PCB Separator spec:

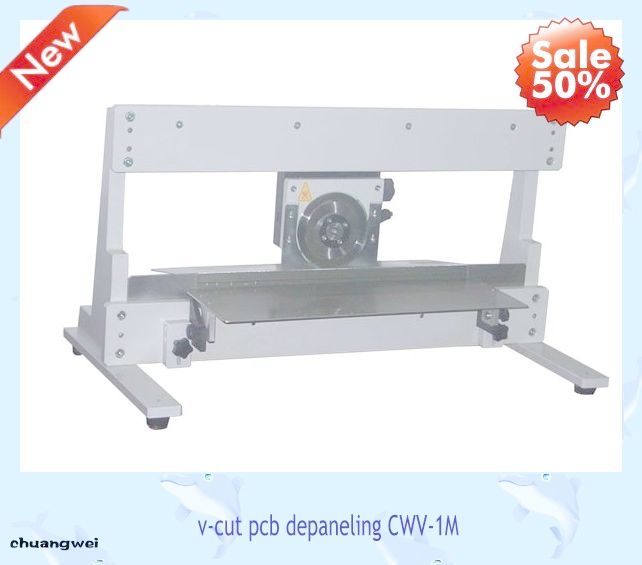

Manual Circular & Linear Blade Depanelizer CWV-1M
| Mode | CWV-1M |
| Size: | 1027x400x436mm |
| The separate size: | 480mm |
| Machine Weight | 30Kg |
| Size: | 787x400x436 mm |
| Minimize thickness: | 0.6-3.5mm |
| Machine Weight: | 45kg |
| Minimize Speed | Manual |
| The separate size: | 720mm |
PCB Separator Features:
Manual Circular & Linear Blade Depanelizer CWV-1M
1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate pre-scored PCB assembly without stress on either PCB or component
3.One touch programming of cut length with digital display
4.Separating speed is adjusted by a rotary knob
5.Handle Intermittent scoring or cut-outs
6.Board with projected component can be cut precisely
7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8.Optional PCB conveyor belt to remove finished board
9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
